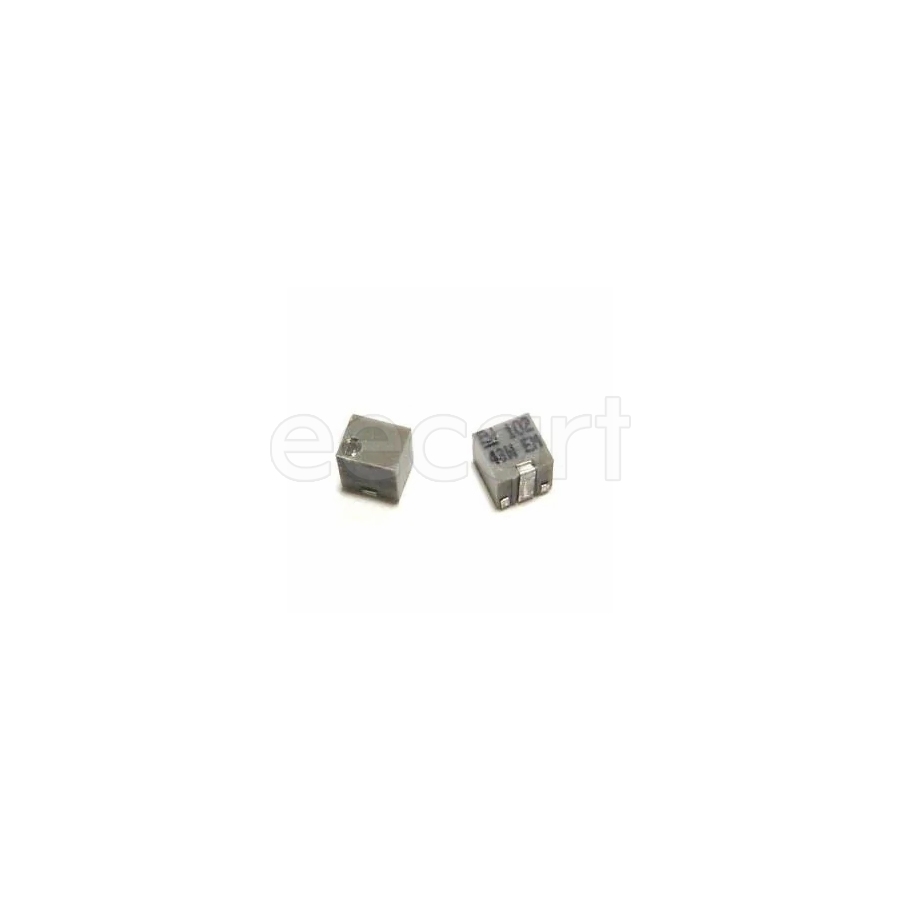

43WR10KLFTR
Manufacturer:
TT Electronics
Mfr.Part #:
43WR10KLFTR
Datasheet:
Description:
Variable Resistors and Potentiometers SMD/SMT 10 kΩ 20 % Number of Turns:11 125 mW
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Length | 4.1 mm |
| Width | 3.18 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -65 °C |
| Resistance | 10 kΩ |
| Power Rating | 125 mW |
| Composition(Kit Type) | Cermet |
| Temperature Coefficient | 100 ppm/°C |
| Number of Turns | 11 |
| Height | 4.0894 mm |
| Packaging | Reel |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Type | Potentiometer |
| Lifecycle Status | Production (Last Updated: 7 months ago) |
| Max Power Dissipation | 125 mW |
| Shape | Square |
Stock: 866
Distributors
pcbx
pcbxUnit Price$3.47268
Ext.Price$3.47268
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.47268 | $3.47268 |
| 10 | $2.92386 | $29.23860 |
| 25 | $2.72679 | $68.16975 |
| 50 | $2.58612 | $129.30600 |
| 100 | $2.45204 | $245.20400 |
| 300 | $2.30435 | $691.30500 |
| 500 | $2.16555 | $1082.77500 |
